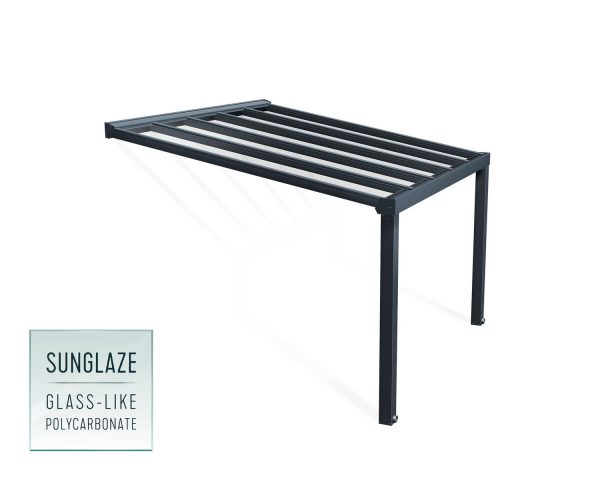

Stockholm 11 ft. x 12 ft. Patio Cover Kit - Grey, Clear Glazing

Structure color
Glazing

Make a statement with the massive and elegant Stockholm Patio Cover. The Stockholm patio awning has a clean design that provides you with an elegant living space to embrace the outdoors while being protected from the elements. The crystal-clear panels are made of polycarbonate, a virtually unbreakable high-end polymer, which provides 100% light transmission and all the benefits of glass without its associated drawbacks, making them exceptionally safe. They are high-impact, harsh weather, and UV-resistant, assuring strength and quality for years to come. This modern awning is designed to be enjoyed all year-round; allowing you to spend more time relaxing, dining outdoors, as a special place to hold parties and special events, or simply enjoying the view of your garden. Add style to your home and backyard in one weekend and spend years enjoying the view.

• Robust and massive structure – highly durable & rust-resistant anthracite powder coated aluminum profiles and galvanized steel connectors
• Unique screw-free patio roofing system provides a rust-resistant hardtop, leak-free glazing, and clean line design
• Virtually unbreakable, 100% UV protected, crystal-clear 4 mm solid polycarbonate roof system – protect from harmful UV rays, hail, and snow
• Unique panels installation and locking system
• Panels maintain their integrity and provide complete UV blockage; they do not discolor, fracture, or become brittle over time
• Integrated, internal hidden gutter
• Simple 2 person DIY installation – sliding panels’ assembly system, ready to assemble pre-drilled profiles, pre-cut panels
• Wall mounting at a min’ of 230 cm / 7’7″
• Aluminum patio cover maintenance-free
• Requires a solid level surface and solid wall support
• Compatible roof blinds are available
The Patio Covers are available in various sizes & colors. Click to find more patio cover kits.

Model: #705893

Dimensions

A Length 370cm 12'2"ft
B Width 332-342.1cm 10'10"-11'2"ft
V Height 256.5-324cm 8'5"-10'8"ft

Product Details

Anchoring included

Secures the patio cover to the surface of your choosing to make the most of your sturdy structure Increases stability and improve weather resistance Anchoring to a solid base such as concrete or asphalt is required

Gutters System

Hidden gutter and gutter pipe allow to channel rainwater and easily collect it for sustainable irrigation

Rating and Reviews

4.35 (67 Reviews)
Rating Breakdown
0
0
2
40
25
Reviews with images
Post a review
Customer Reviews (67)
  1. Janet Country: United States (US)

    Added Living Space

    Family and friends are enjoying the new patio much more since the Stockholm cover has been installed. The structure is of very high quality and adds value to the property. The instructions are complicated but clear, watching the installation videos beforehand proved to be helpful - it took two contractors 3 short days to complete the job. They were impressed...
  2. Tyche van Niekerk Country: United Kingdom (UK)

    Aesthetically pleasing and built to last, this external canopy exudes quality and durability

    I recently purchased the Canopia Stockholm external patio structure, and I must say, I am thoroughly impressed. It has also transformed my outdoor space into a stunning oasis and looks like it has always been there. The first thing that caught my attention was the design of the structure. It is sleek, modern, and effortlessly blends in with the surroundings....
  3. SparklingSophie Country: United States (US)

    the patio's always event-ready

    Functionally, the Patio Cover is fine with some maintenance, it hasn't let us down.

FAQ

The patio cover structure can support a ceiling fan hanging from it. Please make sure you install the fan and the wiring in a secure way, we recommend consulting with a professional.
The sound of the rain makes a nice ambient sound, also depending on the rain’s strength. *The rain noise is not loud. It is actually quite soothing. Doesn’t bother anyone in this house at all, it’s just a little ping noise. Kind of like one of those rain sticks noise makers.
The posts and beams are paintable, please refer to the warranty.
The patio cover’s back beam is app’ 4.6 inches wide.
Yes, it can be mounted to truss ledger, as long as its structure is long, wide and strong enough. We suggest checking this out with a local expert / constructor.
Yes, the polycarbonate panels are high impact resistant and withstand hail.
Yes, it can be mounted on to vinyl sidings, make sure you mount it on to the wall studs and use suitable screws and plugs.
Yes, a grill may be used under the patio cover, as long as it is a reasonable distance from the panels, it should be fine. Please make sure you follow the manufacturer’s safety advice and keep a safe distance.
Up to two SideWalls can be attached to a patio cover, one on each end.
The patio cover can be installed on the ground; however, the posts must be anchored to concrete footings.

Assembly guide

Assembly instructions & Certificates for Downloads

Foundation

A
Set a solid surface prior to assembly
Concrete / tiled floor & wall
Wooden surface (floor or wall)

Use the right screws on your surface

Concrete / tiled floor & wall
Wooden surface (floor or wall)

The screws and masonry anchors supplied with the kit are suitable for concrete / tiled floor & wall fixing only. Please consult with an expert regarding which fasteners are suitable for other surfaces types (not supplied).

B
Fit your patio cover dimensions to the site

Decide what height and distance from the wall
you would like to mount your patio cover. This
will determine the roof angle. Please note that
while the product appearance may change
slightly as a result of that angle, the snow load
weight does not change.


A - Wall mounting height

The wall mounting profile (top back) can be adjusted from 239.4 to 306.6 cm (94.3″ to 120.7″) measuring from the ground to fit your space.

B - Pole side positioning

Poles distance from the wall canbe adjusted from 332 to 342.1 cm (130.7″ to 134.7″) as illustrated in the Diagram.
